ROS机器人Diego 1#制作（二十七）机器视觉-人脸检测

robot
2020年4月30日
439

机器视觉是一个非常复杂的主题，需要比较专业的计算机图形学相关知识，在ROS By Example Volume 1这本书中提供了比较好的入门范例，所以我们将按照此书中所介绍的例子开启我们Diego的机器视觉之旅，后面逐步增加比较复杂的内容。
我们首先来实现实现书中所讲到的人脸检测、特征值获取、人脸跟踪，机器人跟随等功能，由于此书中所使用的代码依赖于opencv2.4，但在Diego我们安装的是ROS kinetic，默认安装了Opencv3，所以本人对其源代码进行了移植，使其可以在Opencv3环境中正确编译，移植后的代码请见github Diego1 plus下的diego_vision目录。
1.关于图像格式
ROS有自己图像格式，但比较流行的都是使用opencv来对图像视频进行处理，因为其封装了大量先进的图像算法，而且还是开源的，所以首先就需要将ROS的图像格式转换为opencv的图像格式，无奇不有的ROS已经提供了cv_bridge这个包来完成转换的任务，而且支持opencv3版本。如果安装的是ros-kinetic-desktop-full的版本，那么这个包已经安装好了，如果没有ros-kinetic-desktop-full则需要单独安装，这里建议大家git clone源代码安装，因为如果用apt-get安装的话，会同时安装opencv2.4版本，这会造成一些版本的冲突，有关cv_bridge的使用方法，可以参考官方的示例代码。
2.ros2opencv3.py通用功能包
将原来的ros2opencv2.py针对opencv2.4的代码，移植到opencv3d的环境下，同时重命名为ros2opencv3.py，类名也改为ROS2OpenCV3，源代码请见GitHub，如下是主要函数功能说明：

__init__：ROS2OpenCV3的初始化函数，设置相关参数，初始化ROS 节点，订阅RGB及RGBD消息主题

on_mouse_click：鼠标事件，用户可以通过鼠标在视频窗口中画出ROI
image_callback：RGB图像的回调函数
depth_callback：深度图像的回调函数
convert_image：将RGB图像从ROS格式转换为opencv格式
convert_depth_image：将深度图像从ROS格式转换opencv格式
publish_roi：发布ROI(Region Of Interesting)消息，此消息描述图像中我们感兴趣的区域
process_image：RGB图像的处理函数，这里未做任何处理，留做后面继承类扩展
process_depth_image：深度图像的处理函数，这里未做任何处理，留做后面继承类扩展
display_selection：用矩形显示用户在视频上选择的区域，用小圆点显示用户在图像上点击的区域
is_rect_nonzero：判断矩形区域是否有效
cvBox2D_to_cvRect：将cvBox2D数据结构转换为cvRect
cvRect_to_cvBox2D：将cvRect数据结构转换为cvBox2D

3.人脸识别
3.1 人脸识别的方法

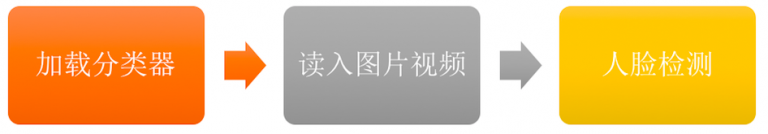

opencv人脸检测的一般步骤是![在这里插入图片描述](https://img-blog.csdnimg.cn/20190806154347216.png)
分类器暨Haar特征分类器，人脸的Haar特征分类器就是一个XML文件，该文件中会描述人脸的Haar特征值，opencv算法针对图片中的数据匹配分类器，从而识别出人脸，我们这里使用到三个分类器

haarcascade_frontalface_alt2.xml
haarcascade_frontalface_alt.xml
haarcascade_profileface.xml

从摄像头读入图片视频后，我们首先需要对图像转换成灰度图像，然后在进行特征获取，最后调用opencv的detectMultiScale既可以检测人脸
3.2 代码分析
代码已经移植到opencv3，可以参见github
3.2.1完整的face_detector.py代码

```
#!/usr/bin/env python

import rospy
import cv2
from ros2opencv3 import ROS2OpenCV3

class FaceDetector(ROS2OpenCV3):
    def __init__(self, node_name):
        super(FaceDetector, self).__init__(node_name)

        # Get the paths to the cascade XML files for the Haar detectors.
        # These are set in the launch file.
        cascade_1 = rospy.get_param("~cascade_1", "")
        cascade_2 = rospy.get_param("~cascade_2", "")
        cascade_3 = rospy.get_param("~cascade_3", "")

        # Initialize the Haar detectors using the cascade files
        self.cascade_1 = cv2.CascadeClassifier(cascade_1)
        self.cascade_2 = cv2.CascadeClassifier(cascade_2)
        self.cascade_3 = cv2.CascadeClassifier(cascade_3)

        # Set cascade parameters that tend to work well for faces.
        # Can be overridden in launch file
        self.haar_scaleFactor = rospy.get_param("~haar_scaleFactor", 1.3)
        self.haar_minNeighbors = rospy.get_param("~haar_minNeighbors", 3)
        self.haar_minSize = rospy.get_param("~haar_minSize", 30)
        self.haar_maxSize = rospy.get_param("~haar_maxSize", 150)

        # Store all parameters together for passing to the detector
        self.haar_params = dict(scaleFactor = self.haar_scaleFactor,
                                minNeighbors = self.haar_minNeighbors,
                                flags = cv2.CASCADE_DO_CANNY_PRUNING,
                                minSize = (self.haar_minSize, self.haar_minSize),
                                maxSize = (self.haar_maxSize, self.haar_maxSize)
                                )

        # Do we should text on the display?
        self.show_text = rospy.get_param("~show_text", True)

        # Intialize the detection box
        self.detect_box = None

        # Track the number of hits and misses
        self.hits = 0
        self.misses = 0
        self.hit_rate = 0

def process_image(self, cv_image):
        # Create a greyscale version of the image
        grey = cv2.cvtColor(cv_image, cv2.COLOR_BGR2GRAY)

        # Equalize the histogram to reduce lighting effects
        grey = cv2.equalizeHist(grey)

        # Attempt to detect a face
        self.detect_box = self.detect_face(grey)

        # Did we find one?
        if self.detect_box is not None:
            self.hits += 1
        else:
            self.misses += 1

        # Keep tabs on the hit rate so far
        self.hit_rate = float(self.hits) / (self.hits + self.misses)

        return cv_image

def detect_face(self, input_image):
        # First check one of the frontal templates
        if self.cascade_1:
            faces = self.cascade_1.detectMultiScale(input_image, **self.haar_params)

        # If that fails, check the profile template
        if len(faces) == 0 and self.cascade_3:
            faces = self.cascade_3.detectMultiScale(input_image, **self.haar_params)

# If that also fails, check a the other frontal template
        if len(faces) == 0 and self.cascade_2:
            faces = self.cascade_2.detectMultiScale(input_image, **self.haar_params)

# The faces variable holds a list of face boxes.
        # If one or more faces are detected, return the first one.
        if len(faces) > 0:
            face_box = faces[0]
        else:
            # If no faces were detected, print the "LOST FACE" message on the screen
            if self.show_text:
                font_face = cv2.FONT_HERSHEY_SIMPLEX
                font_scale = 0.5
                cv2.putText(self.marker_image, "LOST FACE!",
                            (int(self.frame_size[0] * 0.65), int(self.frame_size[1] * 0.9)),
                            font_face, font_scale, (255, 50, 50))
            face_box = None

# Display the hit rate so far
        if self.show_text:
            font_face = cv2.FONT_HERSHEY_SIMPLEX
            font_scale = 0.5
            cv2.putText(self.marker_image, "Hit Rate: " +
                        str(trunc(self.hit_rate, 2)),
                        (20, int(self.frame_size[1] * 0.9)),
                        font_face, font_scale, (255, 255, 0))

        return face_box

def trunc(f, n):
    '''Truncates/pads a float f to n decimal places without rounding'''
    slen = len('%.*f' % (n, f))
    return float(str(f)[:slen])

if __name__ == '__main__':
    try:
        node_name = "face_detector"
        FaceDetector(node_name)
        rospy.spin()
    except KeyboardInterrupt:
        print "Shutting down face detector node."
        cv2.destroyAllWindows()

```
3.2.2代码解释
FaceDetector类继承自ROS2OpenCV3，重写了process_image，对图片进行灰度转换，同时新增了detect_face函数进行人脸检测，在类的初始化代码中载入分类器,cascade_1,cascade_2,cascade_3定义了三个分类器的位置

```
    # Get the paths to the cascade XML files for the Haar detectors.
        # These are set in the launch file.
        cascade_1 = rospy.get_param("~cascade_1", "")
        cascade_2 = rospy.get_param("~cascade_2", "")
        cascade_3 = rospy.get_param("~cascade_3", "")

        # Initialize the Haar detectors using the cascade files
        self.cascade_1 = cv2.CascadeClassifier(cascade_1)
        self.cascade_2 = cv2.CascadeClassifier(cascade_2)
        self.cascade_3 = cv2.CascadeClassifier(cascade_3)
```
在process_image函数中对图片进行灰度转换

```
        # Create a greyscale version of the image
        grey = cv2.cvtColor(cv_image, cv2.COLOR_BGR2GRAY)

        # Equalize the histogram to reduce lighting effects
        grey = cv2.equalizeHist(grey)
```
在detect_face函数中进行人脸检测

```
        if self.cascade_1:
            faces = self.cascade_1.detectMultiScale(input_image, **self.haar_params)

        # If that fails, check the profile template
        if len(faces) == 0 and self.cascade_3:
            faces = self.cascade_3.detectMultiScale(input_image, **self.haar_params)

# If that also fails, check a the other frontal template
        if len(faces) == 0 and self.cascade_2:
            faces = self.cascade_2.detectMultiScale(input_image, **self.haar_params)
```
在detect_face函数中显示信息

```
        # The faces variable holds a list of face boxes.
        # If one or more faces are detected, return the first one.
        if len(faces) > 0:
            face_box = faces[0]
        else:
            # If no faces were detected, print the "LOST FACE" message on the screen
            if self.show_text:
                font_face = cv2.FONT_HERSHEY_SIMPLEX
                font_scale = 0.5
                cv2.putText(self.marker_image, "LOST FACE!",
                            (int(self.frame_size[0] * 0.65), int(self.frame_size[1] * 0.9)),
                            font_face, font_scale, (255, 50, 50))
            face_box = None

# Display the hit rate so far
        if self.show_text:
            font_face = cv2.FONT_HERSHEY_SIMPLEX
            font_scale = 0.5
            cv2.putText(self.marker_image, "Hit Rate: " +
                        str(trunc(self.hit_rate, 2)),
                        (20, int(self.frame_size[1] * 0.9)),
                        font_face, font_scale, (255, 255, 0))

        return face_box
```
父类ROS2OpenCV3 的image_callback函数将会把检测到人脸位置用矩形线框表示出来
4. 载入人脸检测节点
首先确保启动xtion启动，可以通过如下代码启动：

```
roslaunch diego_vision openni_node.launch
```
face_detector.launch文件可见github的diego_vision/launch目录

```
<launch>
   <node pkg="diego_vision" name="face_detector" type="face_detector.py" output="screen">

<rosparam>
       haar_scaleFactor: 1.3
       haar_minNeighbors: 3
       haar_minSize: 30
       haar_maxSize: 150
   </rosparam>

</node>
</launch>
```
启动人脸检测节点

```
roslaunch diego_vision face_detector.launch
```
启动后平面将会显示一个视频窗体，可以检测到摄像头捕捉到的人脸，并且用矩形标识出来
